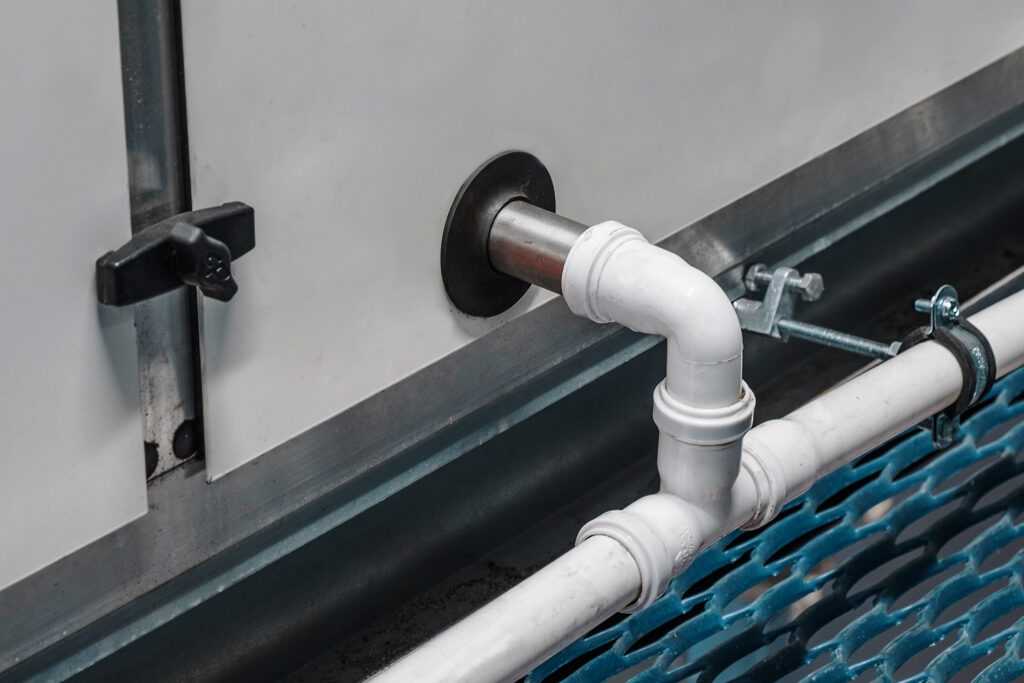

Why Air Handler Condensate Misalignment Causes Repeated Intrusion in the Same Area
Moisture that keeps showing up in the same spot inside a home usually points to a deeper issue. Many homeowners assume the problem comes from a pipe leak, roof damage, or poor waterproofing. What many people in Orlando and Central Florida don’t realize is that air handlers can create hidden moisture problems when the condensate drain or pan shifts out of alignment. This misalignment sends water to the wrong place every time the system runs, and the intrusion repeats until someone identifies the true source.
Air handlers remove humidity from the air, and that moisture collects inside the unit before draining out through a line. This process never stops in Florida’s climate. Humidity stays high year-round, which means constant condensation. Any small shift in the drain pan, the drain line, or the unit itself can send that moisture into the home instead of into the drain. Over time, that steady drip or overflow creates damage in floors, walls, ceilings, and insulation.
Leak Doctor Inc sees this pattern repeatedly across Central Florida homes. The moisture always returns to the same spot because the misalignment does not correct itself. This guide explains why these problems start, what signs appear early, and how a trained technician finds and fixes the issue before major damage forms.
How an Air Handler Creates and Moves Condensation
To understand condensate misalignment, it helps to know how the air handler manages humidity. Every time the system runs, warm air moves over a cold evaporator coil. Moisture in the air collects on the coil and drips into a drain pan. From the drain pan, water flows into the condensate line and exits the home.
This system works only when everything sits level and aligned. The pan must sit flat, the drain line must slope correctly, and the air handler must rest on a stable surface. Once something shifts, water goes to the wrong place.
A home in Orlando or anywhere in Central Florida faces extra strain because the unit spends more hours removing humidity. More hours mean more condensation. Even a slight tilt or sag in the system can cause water to spill over the edge of the pan.
Why Misalignment Develops Inside a Home
Air handlers do not stay perfectly aligned forever. Several factors push them out of position:
1. Settling Floors or Platforms
Many air handlers sit in garages, attics, closets, or utility spaces with platforms that shift over time. Wood platforms warp from humidity. Concrete platforms settle or crack. Even a small change in the platform angle sends water toward the wrong side of the pan.
2. Vibrations During Operation
The air handler vibrates every time the fan or compressor cycles on. These vibrations move the unit slowly over months and years. Once the unit shifts far enough in one direction, the drain pan no longer sits level.
3. Clogged or Heavy Drain Lines
A drain line full of algae, sludge, or debris becomes heavy. That weight pulls on the connection point and tilts the drain pan. The tilt pushes water toward the lowest point, which may not be the drain opening.
4. Poor Installation From the Start
Many older units were installed before current standards. The unit may sit on an uneven base, a makeshift stand, or an unsupported platform. Once the system begins regular use, the misalignment grows.
5. High Humidity
Florida’s humidity constantly affects building materials. Wood swells, insulation shifts, and fasteners loosen. These changes move the air handler slightly each season.
Once the misalignment starts, moisture shows up in the same spot repeatedly because the water always follows the same path.
How Misalignment Triggers Water Intrusion in the Same Area
Moisture intrusion from an air handler rarely spreads randomly. The water follows gravity. If the pan tilts toward the back right corner, moisture escapes at that corner every time the system runs. This predictable direction explains why homeowners notice stains or dampness in the same location.
Here’s what typically happens:
Water Spills Over One Edge of the Pan
The pan fills normally, but the tilt pushes water over the edge instead of toward the drain opening.
Condensate Pools Under the Unit
The water drips onto the floor, platform, insulation, or drywall. That spot remains damp for long periods, especially during summer.
Repeated Intrusion Creates a Pattern
The water moves the same way each day, which creates a stain, soft spot, or odor that never goes away.
Moisture Travels Along Building Materials
Drywall, wood, and insulation act like sponges. They spread moisture horizontally. This creates streaks or wide wet patches in one area.
Mold Thrives in the Repeatedly Damp Zone
Mold grows where moisture stays long enough. It returns quickly if the misalignment stays.
This repeating pattern frustrates homeowners because drying the area only helps temporarily. The moisture keeps returning until someone corrects the alignment problem.
Signs That Point to Condensate Misalignment
Homeowners often recognize the intrusion but not the cause. They treat the symptom instead of the source.
Here are the most common signs:
- A damp area near the air handler that dries and returns
- A musty smell near the closet, attic, or garage where the unit sits
- Soft drywall or bubbling paint
- Rust forming on the bottom of the air handler
- Dripping noises during system operation
- Condensate line that looks full or slow-moving
- Water stains spreading from the same spot
- Visible tilt or shifting of the unit
- A drain pan that fills unevenly
These signs appear long before major damage forms. They give homeowners a chance to act early.
How Technicians Diagnose Misalignment and Moisture Intrusion
Leak Doctor Inc uses a step-by-step process to confirm misalignment and find the exact source of the intrusion.
1. Visual Level Check
A technician uses a digital level to measure the angle of the air handler, the platform, and the drain pan.
2. Drain Flow Test
By pouring a controlled amount of water into the pan, the technician watches how the water moves. If it pools on one side, the misalignment shows instantly.
3. Camera Moisture Mapping
Moisture meters and thermal imaging reveal the water pattern behind walls and under flooring. This mapping confirms the repeated direction of intrusion.
4. Pan and Line Inspection
The technician checks for cracks, debris, and algae growth that may worsen the tilt or block drainage.
5. Structural Assessment
A shifting platform often plays a role. The technician checks for sagging wood, loose fasteners, and gaps that need reinforcement.
Once the cause becomes clear, the fix becomes straightforward.
Repair Methods That Stop Repeated Moisture Intrusion
Fixing condensate misalignment focuses on restoring balance and preventing overflow.
Realigning the Air Handler
The technician lifts or shifts the unit until it sits level again. This small adjustment often solves the problem completely.
Reinforcing or Rebuilding the Platform
Weak or sagging platforms get strengthened so the unit stays steady.
Clearing the Drain Line
Removing algae, buildup, or trapped debris prevents slow drainage and uneven pressure on the pan.
Replacing a Damaged Pan
A cracked or warped pan sends water in unpredictable directions. Replacing it restores proper drainage.
Installing Safety Switches
A float switch shuts the system off if water rises too high, preventing overflow.
Correcting Poor Installation Work
Some units need a full reset to meet current standards.
Once the alignment is fixed, the moisture intrusion stops returning to the same location.
Why This Issue Appears Often in Orlando and Central Florida
Central Florida creates the perfect environment for condensate misalignment.
- Constant humidity means nonstop moisture production
- Heavy storms cause shifting in attics and garages
- Older building materials swell and contract
- Many homes rely on older HVAC installations
- High usage in summer strains the system
- Sand-based soil shifts under concrete pads
This combination creates repeated misalignment issues across the region.
FAQs About Air Handler Condensate Misalignment
Why does the moisture always appear in the same area?
Water follows gravity. A tilted drain pan sends water in the same direction every time the system runs.
Can this issue damage my home?
Repeated moisture can weaken drywall, flooring, insulation, and framing over time.
Why does the pan overflow instead of draining?
The pan sits unevenly or the drain line cannot move water fast enough due to a clog or sag.
How long does misalignment take to develop?
It can shift slowly over months or suddenly after storms, platform movement, or heavy use.
Is the repair complicated?
Most repairs involve realignment, drain cleaning, or platform stabilization, which technicians handle efficiently.
Moisture that appears in the same spot again and again signals a deeper issue inside your air handler. Leak Doctor Inc finds the source fast and restores a dry, safe home. Call 407-426-9995 for expert moisture intrusion services in Orlando and Central Florida.
